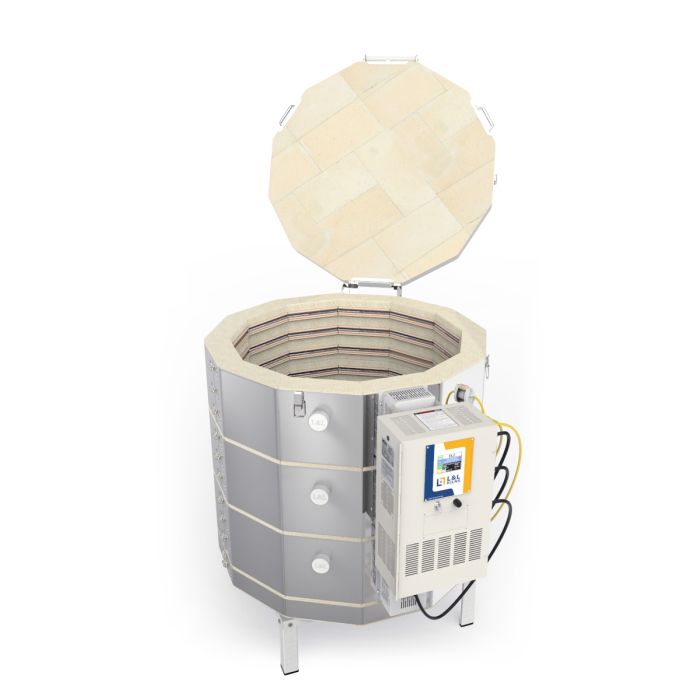

10 cu ft L&L Jupiter JD2927-3
SKU | C-250-JD2927-3 |
---|---|
Brand | L & L |
Model | JD2927-3 |
Cubic Footage | 10 |
Inside Dimensions (in.) | 28 Dia. x 27 Deep |
Outside Dimension | 50 x 40 x 33 High (+8" Stand) |
Actual Weight (lbs) | 450 |
Firing Temperature | Max. Cone 10 |
Insulation | 3" Brick |
Amps | Varies: refer to 'Electrical Info' |
Cord Length | No cord or plug: Direct Wire |
Stacking Area Dim | 25-1/2" Diameter |
Shelf Qty per Layer | (2) Halves |
Warranty 1 | 3 Years |
Warranty 2 | Excludes elements, relays & thermocouples |
Ship Via | Freight |
Shipping weight | 450 Lbs. |
Free Freight | No |
Ships in Own Box | Yes |
Drop Ship | Yes |
Dyna-Glow Element Holders- an L&L exclusive! - Hard ceramic element holders keep elements in place and protect fragile firebrick during element changes.
Dyna-Trol Multi Zone Controller- Easy to program with 4 Preset Programs for standard firings and 6 User Programs for custom firing profiles. With up to 8 Segments, custom programs allow control of heat-up and cool-down, heat soaks, delay start and more.
Zone Control- Multi Zone control monitors and adjusts temperature independently in each section of the kiln to keep the chamber firing evenly.
Spring Assisted Hinge- Makes opening the lid easy and supports it securely. The hinge opens beyond 90 degrees for easy access to the chamber while loading and unloading.
Sectional Design w/Plug-in Control Panel- Sections are completely seperate from the Control Panel for easy disassembly when moving or servicing the kiln. Each section has a cord that plugs into a receptacle on the main panel. Once the cords are unplugged, the main control panel can be removed and the kiln sections seperated. (NOTE: The kiln's hinge system must also be removed for disassembly.)
Model: L&L Jupiter JD2927-3 | |||||
Voltage | Phase | Amps | Breaker | Plug | Notes |
240 | 1 | 57 | 80 Amp | Direct Wire | No Cord |
240 | 3 | 32.9 | 50 Amp | Direct Wire | No Cord |
208 | 1 | 60 | 80 Amp | Direct Wire | No Cord |
208 | 3 | 34.6 | 50 Amp | Direct Wire | No Cord |
Electrical Specifications for Kilns
The chart above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln –or- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information, please call us at 800-431-6067.
Thank you.
