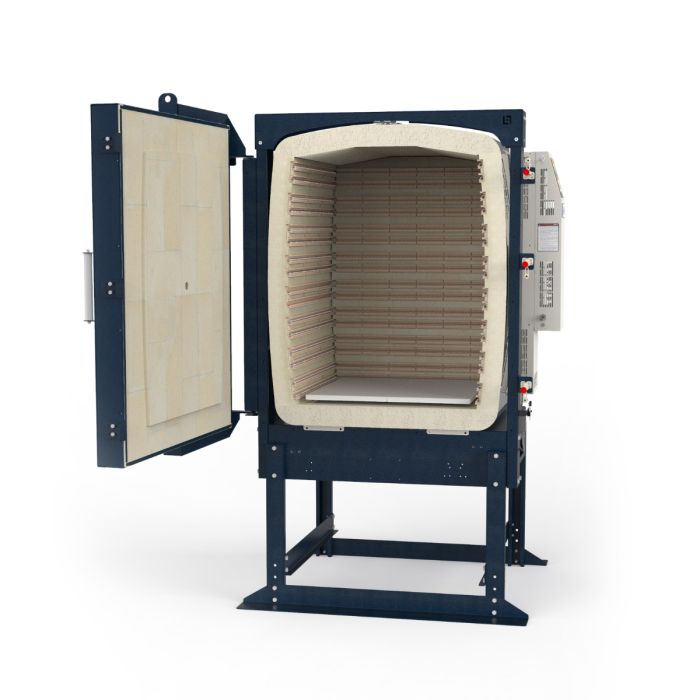

13.7 Cu Ft L&L EasyFire Front Loader eFL2635
SKU | C-250-EFL2635 |
---|---|
Brand | L & L |
Model | eFL2635 |
Cubic Footage | 13.7 |
Inside Dimensions (in.) | 26 W x 26 D x 35 H |
Outside Dimension | 43 W x 36 D x 75 H (Incl. Stand) |
Actual Weight (lbs) | 650 |
Firing Temperature | Max. Cone 10 |
Insulation | 3" Brick walls, roof & floor / 3" Brick + 1" Back Up in door |
Amps | Varies: refer to 'Electrical Info' |
Cord Length | No Cord or Plug: Direct Wire |
Stacking Area Dim | 24" W x 24" D |
Shelf Qty per Layer | (2) 12" x 24" x 3/4" |
Warranty 1 | 3 Years |
Warranty 2 | Excludes elements, relays & thermocouples |
Ship Via | Freight |
Shipping weight | 650 |
Free Freight | No |
Ships in Own Box | Yes |
Drop Ship | Yes |
Dyna-Glow Element Holders- an L&L exclusive! - Hard ceramic element holders keep elements in place and protect fragile firebrick during element changes.
Quad Element System- 4 rows of elements in each 9" kiln section. Quad elements are wound with thicker gauge wire and have a lower watt density than L&L's standard elements. With coils measuring almost 1/2" diameter, these heavy-duty elements stand up to the rigorous demands of Cone 10 Crystalline firings.
Dyna-Trol Multi Zone Controller- Easy to program with 4 Preset Programs for standard firings and 6 User Programs for custom firing profiles. With up to 8 Segments, custom programs allow control of heat-up and cool-down, heat soaks, delay start and more. Multi Zone control monitors and adjusts temperature independently in each section of the kiln to keep the chamber firing evenly.
Zone Control- Multi Zone control monitors and adjusts temperature independently in each section of the kiln to keep the chamber firing evenly.
Easy Service Control Box- The EasyFire control box opens wide giving full access to parts for servicing.
Model: L&L Easy Fire Front Loader eFL2635 | |||||
Voltage | Phase | Amps | Breaker | Plug | Notes |
240 | 1 | 80 | 100 Amp | No Plug | No Cord: Direct Wire |
240 | 3 | 52.9 | 70 Amp | No Plug | No Cord: Direct Wire |
208 | 1 | 92.3 | 125 Amp | No Plug | No Cord: Direct Wire |
208 | 3 | 61.1 | 80 Amp | No Plug | No Cord: Direct Wire |
Electrical Specifications for Kilns
The chart‚ above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln ¢â‚¬â€œor- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information
