L&L Vent-Sure 'Doubler'

This accessory allows you to connect two kilns to one Vent-Sure vent system. It can be added to an existing vent system or can be ordered along with a new vent. The Vent-Sure has enough power to vent up to 20 cubic feet of kiln at once. That means, for instance, that two e28T-3 kilns can be vented while firing at the same time.

The "T" duct fitting attaches to the inlet of the fan motor. There are two dampers on it to allow you to both control the flow and to shut off one or the other kiln. Flexible aluminum dryer duct goes between the ends of this "T" duct and the fittings that attach to the Collection Boxes under the kiln stands.

Includes:

(1) 3" galvanized "T" duct fitting with dampers to attach it to the motor assembly
(1) Collection Box with slide damper
(1) 15' Flexible Aluminum Duct
(1) Floor/Wall Mounting Bracket
Necessary Clamps and hardware

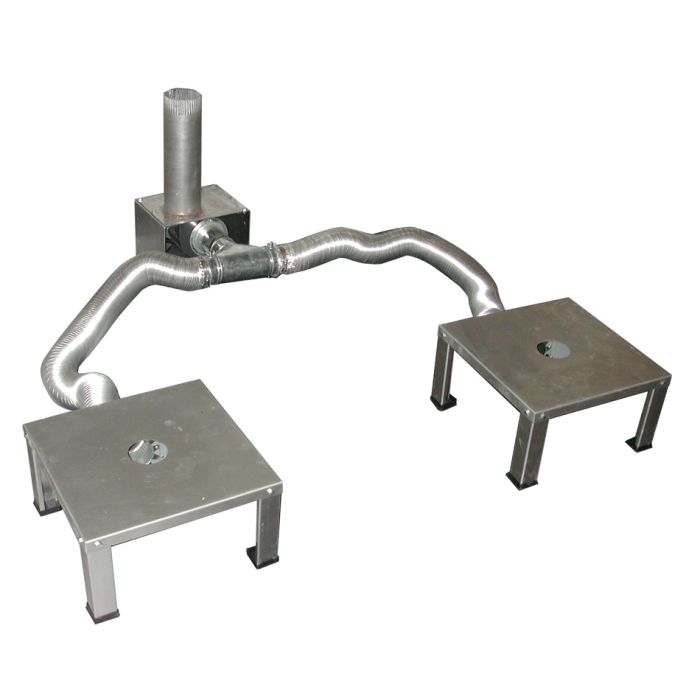

Please note: the image at the left shows the Doubler set up with a VentSure system and 2 kiln stands. The VentSure and Stands are not included. The 2^nd Flex Duct, Collection Box and Blower/Motor Unit are part of the original VentSure system. Only those items listed above are provided.
