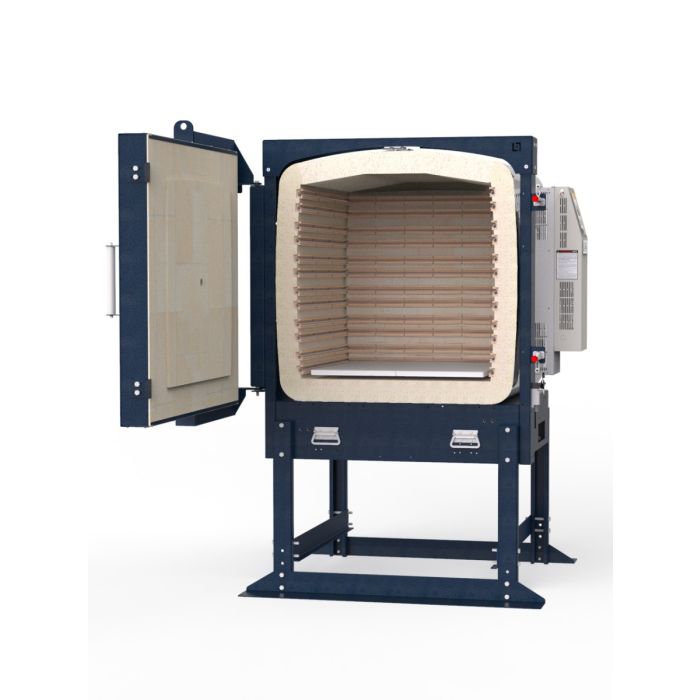

10.2 Cu Ft L&L EasyFire Front Loader eFL2626

In stock
SKU
C-250-EFL2626
Model eFL2626 Front-Loading Kiln with Multi-Program Three-Zoned Genesis Touchscreen control, mounted in an easy-open, cool-firing, piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a stand, and a solid peephole plug. The sides and top are arched for super strength. The base, door, and door frame are formed from precision sheet metal to be both lightweight and strong. These kilns ship by common carrier, and are inexpensive to buy, install, and maintain. 26"W by 26"H by 26" D (10.2 cubic feet). 3" K23 brick. Direct wire hookup. Cone 10 for all voltages. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed to UL499 in the USA &... Read More
Our Price $10,801.50 Regular Price $11,370.00
More Information
SKU C-250-EFL2626
Brand L & L
Model eFL2626
Cubic Footage 10.2
Inside Dimensions (in.) 26 W x 26 D x 26 H
Outside Dimension 43 W x 36 D x 74 H (Incl. Stand)
Actual Weight (lbs) 575
Firing Temperature Max. Cone 10
Insulation 3" Brick walls, roof & floor / 3" Brick + 1" Back Up in door
Amps Varies: refer to 'Electrical Info'
Cord Length Varies: refer to 'Electrical Info'
Stacking Area Dim 24" W x 24" D
Shelf Qty per Layer (2) 12" x 24" x 3/4"
Warranty 1 3 Years
Warranty 2 Excludes elements, ,relays & thermocouples
Ship Via Freight
Shipping weight 575
Free Freight No
Ships in Own Box Yes
Drop Ship Yes

Genesis Touch Screen Control
The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.

Automatic Zone Control
EVEN FIRING. MAKES LOADING MORE FLEXIBLE. ADJUSTS FOR ELEMENT AGING. No need to pay extra for this important feature! Zone control on an electric kiln gives you the utmost controllable temperature uniformity. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln and automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.

Angled Control Panel
EASY TO SEE AND PROGRAM THE CONTROL. Angled control panel makes viewing control and programming easier.

Easy to Remove & Service Control Panel
THIS IS THE SAFEST AND EASIEST KILN TO WORK ON. The Control panel pulls down easily and remains perpendicular to the element box for very easy access. All wiring is neatly laid out in a professional and industrial way with color coding and numbering for easy repair and troubleshooting. Best of all the double panel design results in cooler panels and longer control and relay life.

Protected Thermocouples
KEEP YOUR WORK CLEAN. Ceramic protection tubes protect the end of the thermocouple. Keeps the oxide dust from the thermocouple tip from getting into the kiln while firing.

Hard Ceramic Element Channels
NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.

Solid Wide-View Peephole Plugs
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.

"No Crimp" Ceramic Element Connections
NO CRIMPING! EASY TO CHANGE. Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers. Wires are not crimped to element ends as in some other brands. This means you can change elements yourself without buying an expensive tool or hiring a kiln repair person.

Corrosion Resistant Case
KEEP YOUR KILN LOOKING NEW. Corrosion resistant materials and methods result in a long-lasting kiln.

Door Shut-Off Switch (Easy-Load, eFL Series)
EXTRA SAFETY FOR FRONT-LOADING KILNS. Shuts off power to kiln when the door is open

Write Your Own Review
You're reviewing:10.2 Cu Ft L&L EasyFire Front Loader eFL2626
Your Rating

No Related Posts

Model: L&L Easy Fire Front Loader eFL2626
Voltage Phase Amps Breaker Plug Notes
240 1 64 80 Amp No Plug No Cord: Direct Wire
240 3 37 50 Amp NEMA 15-50 6 Ft Cord
208 1 73.9 100 Amp No Plug No Cord: Direct Wire
208 3 42.6 60 Amp NEMA 15-50 6 Ft Cord

Electrical Specifications for Kilns

The chart‚ above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln ¢â‚¬â€œor- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information
