6.6 Cu Ft L&L EasyFire Front Loader eFL1626

In stock
SKU
C-250-EFL1626

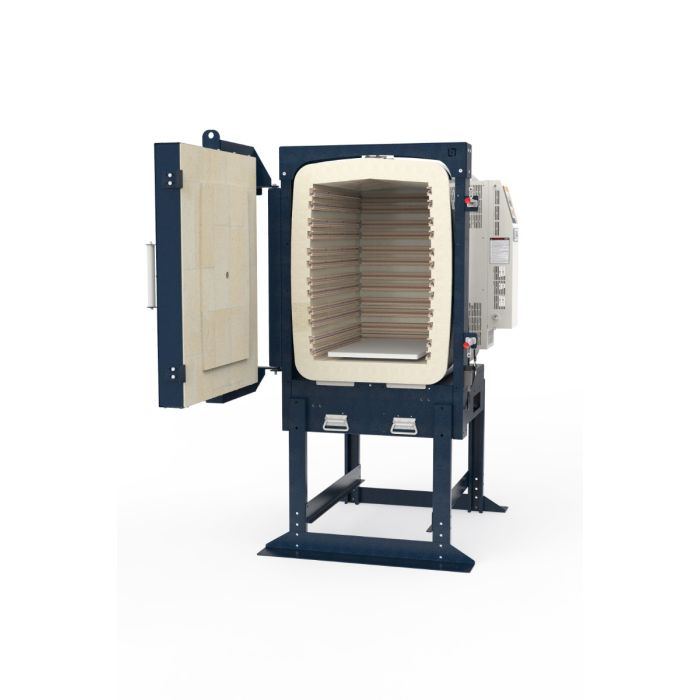

Model eFL1626 Front-Loading Kiln with Multi-Program Three-Zoned Genesis Touchscreen control, mounted in an easy-open, cool-firing, piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a stand, and solid peephole plugs.  The sides and top are arched for super strength. The base, door, and door frame are formed from precision sheet metal to be lightweight and strong. These kilns ship by common carrier, and are inexpensive to buy, install, and maintain. 17"W by 26"H by 26" D (6.6 cubic feet). 3" K23 brick. All models are rated to Cone 10. *A special model eFL1626-208-X is rated at Cone 5 but has 48.0 amps and a 60 amp fuse. Plugs on US Models only:... Read More
Our Price $8,778.00 Regular Price $9,240.00
More Information
SKU C-250-EFL1626
Brand L & L
Model eFL1626
Cubic Footage 6.6
Inside Dimensions (in.) 17 W x 26 D x 26 H
Outside Dimension 33 W x 36 D x 74 H (Incl. Stand)
Actual Weight (lbs) 475
Firing Temperature Varies: refer to 'Electrical Info'
Insulation 3" Brick walls, roof & floor / 3" Brick + 1" Back Up in door
Amps Varies: refer to 'Electrical Info'
Cord Length 6 Ft.
Stacking Area Dim 14" W x 24" D
Shelf Qty per Layer (1) 14" x 24" x 3/4"
Warranty 1 3 Years
Warranty 2 Excludes elements, relays & thermocouples
Ship Via Freight
Shipping weight 475
Free Freight No
Ships in Own Box Yes
Drop Ship Yes

Genesis Touch Screen Control
The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.

Automatic Zone Control
EVEN FIRING. MAKES LOADING MORE FLEXIBLE. ADJUSTS FOR ELEMENT AGING. No need to pay extra for this important feature! Zone control on an electric kiln gives you the utmost controllable temperature uniformity. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln and automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.

Angled Control Panel
EASY TO SEE AND PROGRAM THE CONTROL. Angled control panel makes viewing control and programming easier.

Easy to Remove & Service Control Panel
THIS IS THE SAFEST AND EASIEST KILN TO WORK ON. The Control panel pulls down easily and remains perpendicular to the element box for very easy access. All wiring is neatly laid out in a professional and industrial way with color coding and numbering for easy repair and troubleshooting. Best of all the double panel design results in cooler panels and longer control and relay life.

Protected Thermocouples
KEEP YOUR WORK CLEAN. Ceramic protection tubes protect the end of the thermocouple. Keeps the oxide dust from the thermocouple tip from getting into the kiln while firing.

Hard Ceramic Element Channels
NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.

Solid Wide-View Peephole Plugs
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.

"No Crimp" Ceramic Element Connections
NO CRIMPING! EASY TO CHANGE. Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers. Wires are not crimped to element ends as in some other brands. This means you can change elements yourself without buying an expensive tool or hiring a kiln repair person.

Corrosion Resistant Case
KEEP YOUR KILN LOOKING NEW. Corrosion resistant materials and methods result in a long-lasting kiln.

Door Shut-Off Switch (Easy-Load, eFL Series)
EXTRA SAFETY FOR FRONT-LOADING KILNS. Shuts off power to kiln when the door is open

Write Your Own Review
You're reviewing:6.6 Cu Ft L&L EasyFire Front Loader eFL1626
Your Rating

No Related Posts

Model: L&L Easy Fire Front Loader eFL1626
Voltage Phase Amps Breaker Plug Notes
240 1 48 60 Amp NEMA 6-50 6 Ft Cord
240 3 30.1 50 Amp NEMA 15-50 6 Ft Cord
208 1 56 70 Amp DIRECT WIRE no cord included
208 3 34.7 50 Amp NEMA 15-50 6 Ft Cord
