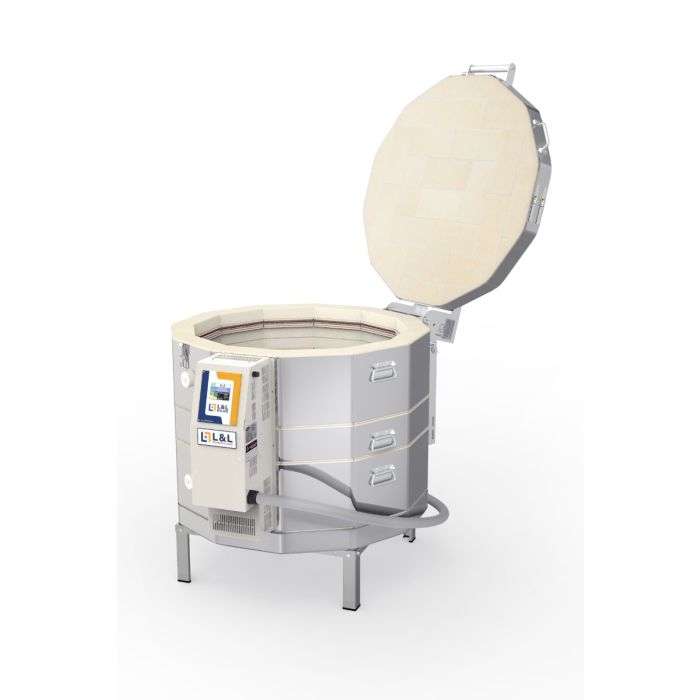

8.5 cu ft L&L EasyFire e28M-3
| SKU | C-250-E28M-3 |
|---|---|
| Brand | L & L |
| Model | e28M-3 |
| Cubic Footage | 8.5 |
| Inside Dimensions (in.) | 28 Dia. x 22-1/2 Deep |
| Outside Dimension | 46 x 35 x 28-1/2 (+8" Stand) |
| Actual Weight (lbs) | 385 lbs |
| Firing Temperature | Varies: refer to 'Electrical Info' |
| Insulation | 3" Brick |
| Amps | Varies: refer to 'Electrical Info' |
| Cord Length | 6 Ft. |
| Stacking Area Dim | 25-1/2" Diameter |
| Shelf Qty per Layer | (2) Halves |
| Warranty 1 | 3 Years |
| Warranty 2 | Excludes elements, relays & thermocouples |
| Ship Via | Freight |
| Shipping weight | 445 lbs. |
| Free Freight | No |
| Ships in Own Box | Yes |
| Drop Ship | Yes |
Dyna-Glow Element Holders- an L&L exclusive! - Hard ceramic element holders keep elements in place and protect fragile firebrick during element changes.
Dyna-Trol Multi Zone Controller- Easy to program with 4 Preset Programs for standard firings and 6 User Programs for custom firing profiles. With up to 8 Segments, custom programs allow control of heat-up and cool-down, heat soaks, delay start and more.
Zone Control- Multi Zone control monitors and adjusts temperature independently in each section of the kiln to keep the chamber firing evenly.
Spring Assisted Hinge- Makes opening the lid easy and supports it securely. The hinge opens beyond 90 degrees for easy access to the chamber while loading and unloading.
Easy Service Control Box- The EasyFire control box opens wide giving full access to parts for servicing.
| Model: L&L Easy Fire e28M-3 | |||||
| Voltage | Phase | Amps | Breaker | Plug | Notes |
| 240 | 1 | 48* | 60 Amp | NEMA 6-50 | 6 Ft Cord |
| 240 | 3 | 40 | 50 Amp | NEMA 15-50 | 6 Ft Cord |
| 208 | 1 | 48* | 60 Amp | NEMA 6-50 | 6 Ft Cord |
| 208 | 3 | 39.8 | 50 Amp | NEMA 15-50 | 6 Ft Cord |
| *Please Note: Due to its size, the low amperage draw on Single Phase versions of this kiln reduces its firing capability. The e28M-3 240V/1Ph version is rated to Cone 8. The e28M-3 208V / 1 Ph version is rated to Cone 5. Both 3 Ph versions of the e28M-3 are rated to Cone 10 by L&L. | |||||
Electrical Specifications for Kilns
The chart above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln –or- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information, please call us at 800-431-6067.
Thank you.
-

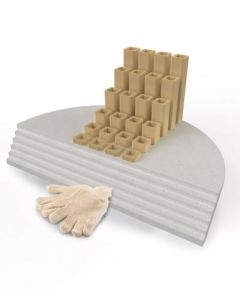

Furniture Kit for L&L e28M-3Regular Price $715.00 Our Price $607.75 -
-
