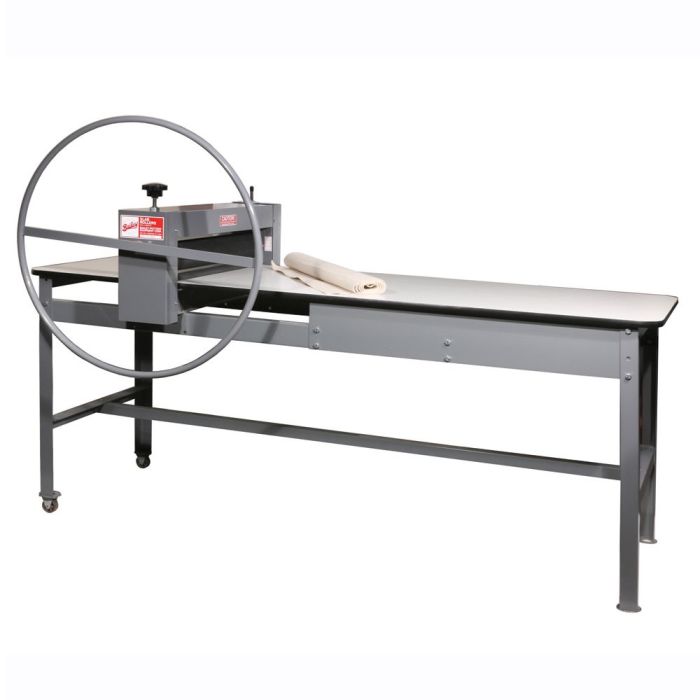

DRD 40" Manual Slab Roller with Long Table
| SKU | M-400-009-LT-K |
|---|---|
| Brand | Bailey Pottery |
| Model | 40 Manual |
| Drive System | Gear Reduced |
| Slab Thickness | 1/16 in to 1 3/4 in. infinitely variable |
| Slab Roller Table Dim | 84 L x 40 W x 34 H |
| Actual Weight (lbs) | 306 lbs |
| Slab Dimensions | 40 in. x 5 ft. |
| Free Freight | No |
| Blank space | No |
| Roller Width (in.) | 40 |
| Slab Direction | One Direction |
| Handle Type | 34 IN. ROUND |
| Dimensions (in.) | 84 L x 51 W x 56 H including handle |
| Roller Diameter (in.) | 4 |
| Gear Reduction | yes |
| Ship Via | Freight |
| Assembly Required | Yes |
| Drop Ship | No |
34" Round Handle - The large 34" Diameter Round Handle provides ample leverage for easy rolling.
Massive 4" Diameter Rollers - Our largest rollers handle the most clay and provide maximum compression during slab formation.
Simultaneous Height Adjustment - Top roller adjusts from one side only. Rollers always remain parallel for consistently even slabs.
Steel Gear Reduction - Bailey uses only steel gears in their heavy-duty slab rollers for strength and durability. Gear reduced for extra easy operation.
One-Pass Slab Rolling - Bailey's unique Bi-Level Table features a lower feed counter that increases the surface contact between the bottom roller and the clay canvas for better grip and compression. This combined with the massive 4" rollers allows you to roll up to 3" of soft wedgeable clay into a slab in one pass.
This large 40" W x 7 Ft. Long Table has a full 60" L exit counter to the right side of the machine to work on the finished slab. The 18" L feed counter on the left is short because wedgeable clay can be stacked up to 3 in. high to be fed into the machine, depending on the desired finished slab thickness. The counter height is 34". The DRD Long Table ships via truck and assembly is required.
