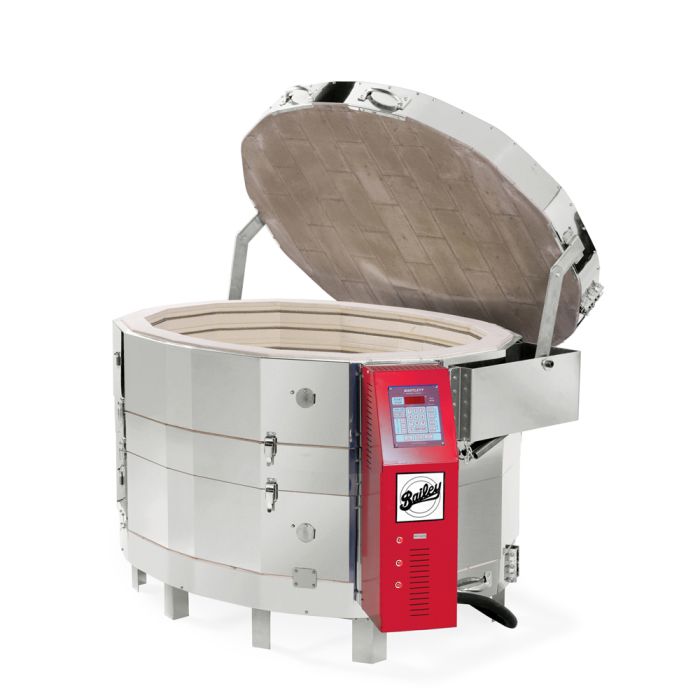

13.7 cu ft Bailey TL-4222-10 w/Free H.A. Furn Kit, Extra Element Set

In stock
SKU
C-200-4222
This package includes the Bailey TL-4222-10 Kiln, a Free High Alumina Furniture Kit, Free Extra Element Set and Free Freight within the contiguous US. (A small Western State Surcharge applies to some shipments: click here for details.) The TL-4222-10 is a true Cone 10 kiln with both the extra power and extra insulation to reach temperature with ease. Many Oval kilns manufactured today do not have enough power to heat such a large chamber effectively. Some are only rated Cone 1 depending on the voltage. Compare the amperage draws between the various brands to see the difference. In addition to extra power input, the 4222-10 has double-insulated walls and an extra insulated lid to retain as much heat as possible. You must be able to retain... Read More
Our Price $8,050.00 Regular Price $9,110.00
Buy together
+
Bailey Double Fume Vent System
Regular Price $550.00 Our Price $440.00
Genesis 2.0 Controller Upgrade Only with New TL-Bailey Kiln
$8,854.00
More Information
SKU C-200-4222
Brand Bailey
Model TL-4222-10
Cubic Footage 13.7
Inside Dimensions (in.) 41 x 31 x 22-1/2 Deep
Outside Dimension 58 x 47 x 29-1/2 H (+8" Stand)
Actual Weight (lbs) 625
Firing Temperature Max. Cone 10
Insulation 2-1/2" Brick + 1" Block
Amps Varies: refer to 'Electrical Info'
Cord Length 8 Ft.
Stacking Area Dim 39" L x 26" W Oval
Shelf Qty per Layer (2) 26" x 3/4" Half Rounds & (1) 26" x 13" x 3/4" Rectangle
Warranty 1 2 Years
Warranty 2 Excludes elements, relays & thermocouples
Ship Via Freight
Shipping weight 625
Free Freight Yes
Ships in Own Box Yes
Drop Ship No

Bailey Top-Loading Electric Energy Saver Kilns are built with efficiency in mind. Designed to fire to Cone 10 economically using less power over the course of a firing than other top-loading electric kilns. Features include:

Double-Insulated Walls- 2-1/2" Brick + 1" Fiber Board provides significantly better heat retention than brick alone. The 1" board has the same insulative value as 2" of brick and, unlike fiber blanket, does not compress and lose its value. Heat retention is the key to efficient firings. The more heat that is retained, the less energy input is necessary to gain temperature and the lower your firing costs. In addition to more efficient heat-up, Bailey kilns cool slower yielding better glaze results. And unlike other 'extra-insulated' kilns, the fiber board is added outside of the brick and does not reduce the size of the firing chamber or stacking space.

Floor Element- Helps the controller balance the temperatures in the kiln more easily by directing heat at the bottom where a kiln is naturally cool.

Multi-Zone Controller-  Fully programmable with (4) Preset programs for standard firings and (6) User programs for custom firing profiles. Custom programs allow control of heat-up, cool-down, heat soaks, delay start and more. Multi- Zone control monitors and adjusts temperature in the chamber to keep it even from top to bottom.

Zone Pilot Lights- Pilot Lights indicate when each Zone is firing throughout the cycle. Important information when diagnosing firing issues.

Easy-Lift Hinge- Counterbalanced hinge makes lifting even the heaviest lid a breeze. Once open, the lid is supported securely on both sides. (All Models except the 1822-10)

Easy Access Control Box- Hinged Control Box swings wide open for easy access to kiln wiring and parts. Vented box keeps components cool and the angled keypad is easy to view.

Write Your Own Review
You're reviewing:13.7 cu ft Bailey TL-4222-10 w/Free H.A. Furn Kit, Extra Element Set
Your Rating

No Related Posts

Model: Bailey TL-4222-10
Voltage Phase Amps Breaker Plug Notes
240 1 75 100 Amp Direct Wire 8 Ft Cord
240 3 43.3 60 Amp Direct Wire 8 Ft Cord
208 1 79.9 100 Amp Direct Wire 8 Ft Cord
208 3 46.1 60 Amp Direct Wire 8 Ft Cord

Electrical Specifications for Kilns

The chart above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln –or- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information, please call us at 800-431-6067.

Thank you.
