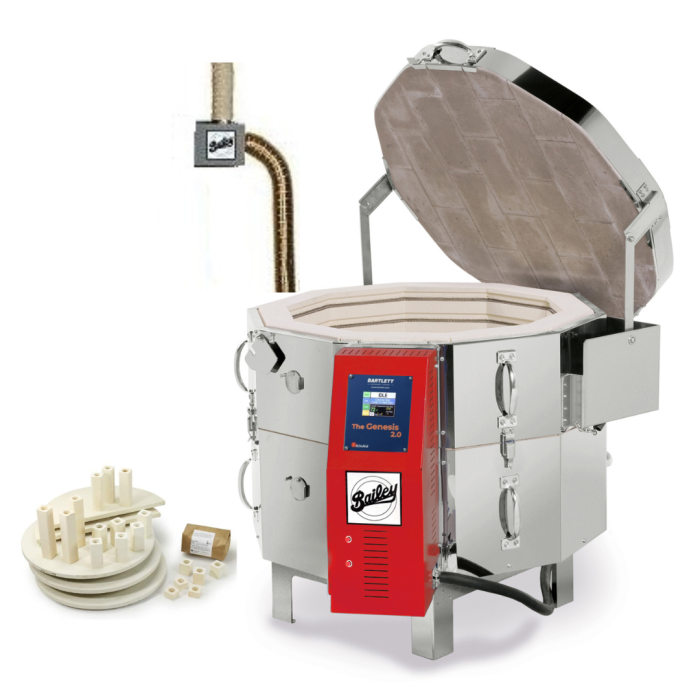

Bailey TL-2318 Complete Kiln Package with Genesis Touch Screen Controller, Vent & Furniture Kit
SKU | C-200-2318-G |
---|---|
Brand | Bailey |
Model | TL-2318 |
Cubic Footage | 4.7 |
Inside Dimensions (in.) | 23-1/2 Dia. x 18 Deep |
Outside Dimension | 45 x 35 x 23 H (+ 8" Stand) |
Actual Weight (lbs) | 240 |
Firing Temperature | Max. Cone 10 |
Insulation | 2-1/2" Brick + 1" Block |
Amps | Varies: refer to 'Electrical Info' |
Cord Length | 8 Ft. |
Stacking Area Dim | 21" Diameter |
Shelf Qty per Layer | (1) Full or (2) Halves |
Warranty 1 | 2 Years |
Warranty 2 | Excludes elements, relays & thermocouples |
Ship Via | Freight |
Shipping weight | 240 |
Free Freight | Yes |
Ships in Own Box | Yes |
Drop Ship | No |
Bailey Top-Loading Electric Energy Saver Kilns are built with efficiency in mind. Designed to fire to Cone 10 economically using less power over the course of a firing than other top-loading electric kilns. Features include:
Double-Insulated Walls- 2-1/2" Brick + 1" Fiber Board provides significantly better heat retention than brick alone. The 1" board has the same insulative value as 2" of brick and, unlike fiber blanket, does not compress and lose its value. Heat retention is the key to efficient firings. The more heat that is retained, the less energy input is necessary to gain temperature and the lower your firing costs. In addition to more efficient heat-up, Bailey kilns cool slower yielding better glaze results. And unlike other 'extra-insulated' kilns, the fiber board is added outside of the brick and does not reduce the size of the firing chamber or stacking space.
Floor Element- Helps the controller balance the temperatures in the kiln more easily by directing heat at the bottom where a kiln is naturally cool.
Multi-Zone Controller- Fully programmable with (4) Preset programs for standard firings and (6) User programs for custom firing profiles. Custom programs allow control of heat-up, cool-down, heat soaks, delay start and more. Multi- Zone control monitors and adjusts temperature in the chamber to keep it even from top to bottom.
Zone Pilot Lights- Pilot Lights indicate when each Zone is firing throughout the cycle. Important information when diagnosing firing issues.
Easy-Lift Hinge- Counterbalanced hinge makes lifting even the heaviest lid a breeze. Once open, the lid is supported securely on both sides. (All Models except the 1822-10)
Easy Access Control Box- Hinged Control Box swings wide open for easy access to kiln wiring and parts. Vented box keeps components cool and the angled keypad is easy to view.
Standard Cone 10 High Alumina Furniture Kit included with Kiln:
(2) 21” x 3/4” Full Round Shelves
(2) 21” x 3/4” Half Round Shelves
(3) each 2”, 6” & 8” Tall Posts
(6) each 1” & 4” Tall Posts
(Posts are 1-3/4" x 1-3/4" Square)
2 lbs of Cone 10 Kiln Wash
Model: Bailey TL-2318 | |||||
Voltage | Phase | Amps | Breaker | Plug | Notes |
240 | 1 | 35 | 50 Amp | Direct Wire | 8 Ft Cord |
240 | 3 | - | - | - | Not Available |
208 | 1 | 40 | 50 Amp | Direct Wire | 8 Ft Cord |
208 | 3 | - | - | - | Not Available |
Electrical Specifications for Kilns
The chart above lists the available electrical specification options for this kiln. You must order the kiln with the proper wiring specifications for it to function properly. These specifications are determined by the power supply that you will be connecting the kiln to. Review this information with your electrician to determine the proper Voltage and Phase for your kiln. The choice of V/Ph determines the Amperage draw of the kiln and the size of the breaker needed. A kiln requires a breaker that is 20% above the actual amperage draw. Be sure that you can supply sufficient power for the kiln you choose. The chart also indicates the NEMA plug configuration for the kiln -or- if it must be Direct Wired. Voltage and Phase selection must be confirmed in writing with all kiln orders. If you have any questions concerning this information
