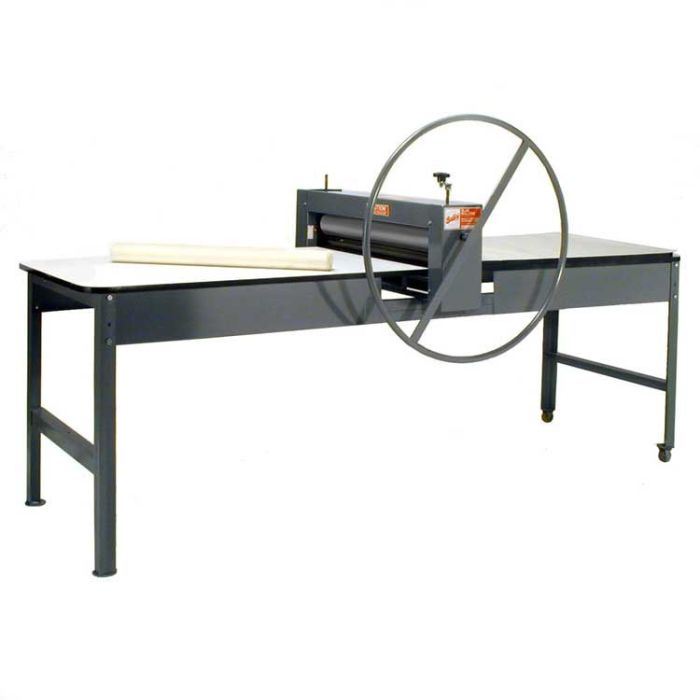

DB 30" Manual Slab Roller with Long Table

In stock
SKU
M-400-50-LT-K
Bailey Drive Board Series The Drive Board Series utilizes our patented Drive Board process for producing perfectly compressed uniform slabs. In this version, the Drive Board is a part of the drive mechanism and compression process. The board travels through the machine with the clay & canvas and serves as a way of projecting slabs along that might otherwise stall from the weight and/or drag of the clay. The drive board has several distinct functional advantages over the DRD for certain techniques.  Advantages of the Drive Board ProcessArchitectural scale work can require very thick slabs while other techniques may require very thin slabs. The DRD system is partly dependent on the density of the clay in order for the slab to... Read More
Regular Price $3,319.00 Our Price $2,724.00
More Information
SKU M-400-50-LT-K
Brand Bailey Pottery
Model DB 30 Manual
Drive System Drive Board
Slab Thickness 0 to 1 3/4 in. infinitely variable
Slab Roller Table Dim 102 L x 30 W x 34 H
Actual Weight (lbs) 332
Slab Dimensions 30 in. x 4 ft.
Free Freight No
Blank space No
Roller Width (in.) 30
Slab Direction Bi-Directional
Handle Type 34 in. Round
Dimensions (in.) 102 L x 41 W x 56 H including handle
Roller Diameter (in.) 4
Gear Reduction Chain & Sprocket
Ship Via Freight
Assembly Required Yes
Drop Ship No
Shipping weight 382 lbs

Drive Board - Bailey's unique Drive Board supports the clay slab during the rolling process. This is advantageous when rolling unusually thick or thin slabs because it prevents them from bogging down as they feed out of the rollers. The Drive Board system allows the machine to be rolled either direction lending itself to some techniques not easily achieved with a one-directional machine.

34" Round Handle - The large 34" diameter Round Handle provides ample leverage for easy rolling.

Massive 4" Dia. Rollers - Our largest rollers handle the most clay and provide maximum compression during slab formation.

Simultaneous Height Adjustment - Top roller adjusts from one side oly. Rollers always remain parallel for consistently even slabs.

Chain and Sprocket Drive - Rollers are driven by a #40 chain & sprocket for maximum strength under heavy loads.
